AIR CUSHION

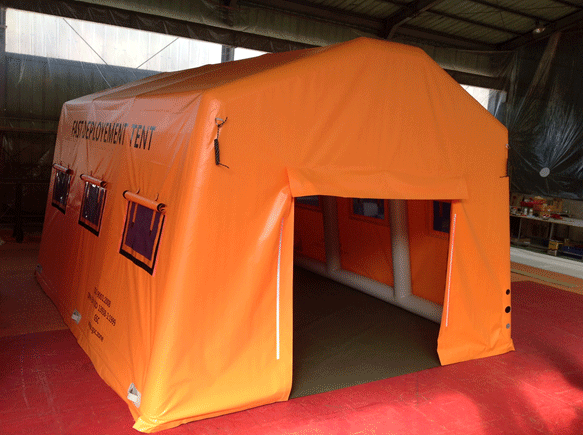

Air Tent
Air Tent
  • It is a cylinder type tube which is produced with a powerful special P.V.C coated fabric, which is strong against friction, varying climates and temperatures.
  • It is made from a special waterproofed fabric, which is strong under stress.
  • A large tent is constructed easily and quickly by inflation. It is also easy to carry and move.
  • It is easy to use as a temporary command post in an emergency situation and is suitable as a rescue centre in emergency situation.
  • As it is portable it can be used in various situations, for example, in an exhibition center (indoors or outdoors) or as a temporary warehouse/storage facility.
Size
Model No SIZE(WxLxH)
GSC3060 300X600X210
GSC4560 450X600X250
GSC4070 400X700X260
GSC5040 500X400X230
GSC5672 560X720X270
GSC6012 600X720X300
GSC6065 600X650X300
GSC8560 850x600x300
* Remark: We can supply as your ordered size
Use

Multi purpose, rapid response shelters can be used for:

  • Storage Areas
  • Vehicle Maintenance
  • Field Hospital
  • Portable Morgue
  • Casualty Holding Area
  • Forward Advance Post
  • Command Centres
  • Crime Scene Preservation
  • Rescue Headquarter in Emergency
  • Temporary Outdoor Warehouse
  • Movable Outdoor Fair & Outdoor Events
  • Temporary Outdoor Lodging
Features
  1. Air inflated Solid construction with ability to inflate in 5min or less Purpose to serve as a shelter in emergency situation.
  2. The tent could be inflated by air cylinder or air compressor
  3. Inflating time is not more than 5minutes or less
  4. The tubular system of the tents has no metal
  5. The tents can work in temperature between -30℃ to +70℃ degree
  6. Operating pressure 20%~30%(0.02~0.03bar)
  7. The tents should be provided with pressure valve for anti over inflation with Automatic Air Adjuster
  8. The carry-bag of the tent should be waterproof
  9. The tents should be provided with maintenance (repair) kit
  10. The tents should be provided two windows
  11. The tens should be provided with two doors (entrance or exit)
  12. The tents should be provided with windows (outlets) for hot and cold at least two windows as ventilation
  13. The tents should be provided with belt-hangers for lighter cable
  14. The tents should be able to be connected with each other
  15. The material is 1000 denier polyester coated with plastomer on the both sides
  16. Ground Floor should be anti-skid surface
  17. Pegs/Rods Repair kit. Carry bag and hammer
  18. Can be carried by 2-8 persons, dependent on size of shelters
  19. Can be anchored on hard or soft standing
  20. Supplied to army, navy, air forces and emergency services worldwide
  21. A wide range of size available
  22. Shelters can be linked together
Accessories
  • HAND PUMP & AIR BLOWER WITH HOSE
  • STEEL PEGS / PLASTIC PEGS
  • 30MTR CABLE REEL WITH 2PCS EACH PLUG / SOCKET
  • HYDRAULIC DRILLING MACHINE
  • 6.8LTR FIBER CARBON CYLINDER WITH GAUGE VALVE, EU VALVE & HOSE(300 bar)
  • HAMMER 1KG & 2KG(TOTAL:2PCS)
  • GROUND SHEET
  • REPAIR KIT
Product Detail
Air Tent

*THE FLUORESCENT LAMP ON THE TOP

There are 2~3lights on the top made by belts in the inside ceiling with a high-strength adhesive

Air Tent

*THE ELECTRIC CABLE HANGER

There are 4 electric cable hangers made by belts in the inside ceiling with a high-strength adhesive

Air Tent

*THE POLYESTER ROPE FOR MAINTAINING

Air Tent for maintaining against the wind, 10mtr and 5mtr polyester rope have draw on the top

Air Tent

*THE AIR VENTILATION DOOR

Every Air Tent has the air ventilator Doors in the top of the entrance of the both side

Air Tent

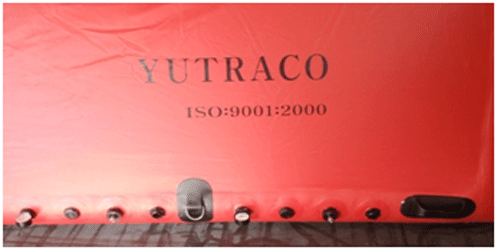

*AIR INFLATION, DEFLATION, AIR ADJUSTER, PRESSURE GAUGE & AIR BLOWER VALVES

There are 2 Air inflation valves, 2 Air deflation valves, 2 Air adjusters, 2 pressure gauges and 2 Air Blower Valves
It should be required when Air Inflating, 2 cylinder of 150bar and 1 cylinder of 300bar has to be air-filled

Air Tent

*THE LINKED PASSAGE

Even different dimension of Air Tent, it can be connected each other through the connected passage
After linked each other by ZIPPER

Customization is available for all products
