ESCAPE DESCENDER

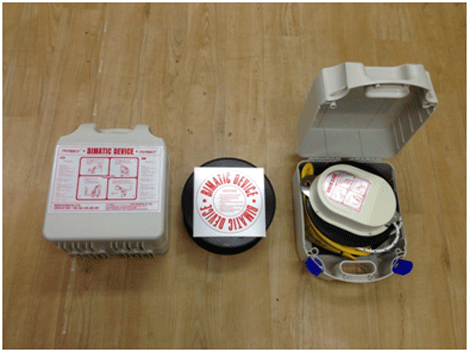

ESCAPE DESCENDER (Asian Type)
The Sliding Speed in Average
| Weight | 25KG | 65KG | 80KG | 100KG |
|---|---|---|---|---|
| cm/s | 42cm | 68cm | 76cm | 85cm |
Description
| Floor | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length(M) | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 |
| Floor | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 |
| Length(M) | 48 | 51 | 54 | 57 | 60 | 63 | 66 | 69 | 72 | 75 | 78 | 81 | 84 |
| Floor | 29 | 30 | 31 | 32 | 33 | Over | |||||||
| Length(M) | 87 | 90 | 93 | 96 | 99 | 100 |
To utilize our escape device, the wheel containing excess cable is dropped to the ground from the escape platform allowing the cable to unwind. The first evacuee dons the rescue strap, and exits the platform. As he descends, the opposite end of the cable containing an additional rescue strap is raised to the level of the escape platform, affording the next evacuee the opportunity to escape. The process continues until all are evacuated.
Specifications
| Speed | 1.2m / sec |
|---|---|
| Useable Length | 10m ~ 100m |
| Weight | 3.6Kg(9mtr) |
| Maximum Load | 136Kg(1500N) |
| Quality | CE0086 |

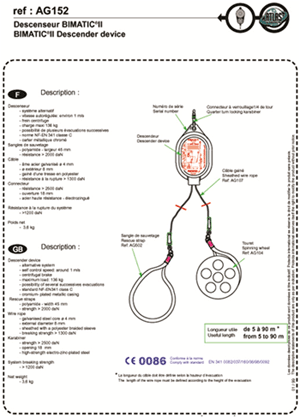

Escape Descender (Escape Device)
This Escape Descender device can lead the escaper to the ground safely when there is a fire or an emergency. It descends automatically at the same speed. It can be sold only after the Korean Fire Inspection Corporation's approval.
- The rope is made of wire-rope that is used in planes for endurance.
- It descends slowly without acceleration.
- One time, One person only.
How to Use
- Make a supporting pole
- Connect the hook of the rope with the last ring of the supporting pole.
- Fasten the belt around the chest
- Toss the rope out of the entrance. Put your legs into the entrance first.
- When the rope descends, look at the wall and stay still.

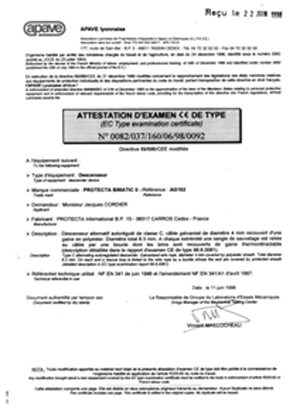

Certificate
