Spring Type Escape Chute

The Spring Type Escape Chute is a device b which persons in immediate danger, can activate the escape chute, and use it to evacuate indoor in high building
The Escape Chute System consists of two major components:
1. Is the storage/deployment device, which will change to suit the circumstances in which the chute is to be used.
2. Is the Escape Chute its self, the only change to occur on the chute is its length, to suit the application
The Chute is manufactured in three distinct and separate layers, each layer can be separated from the other to perform maintenance or carry out repairs

Layer 1: The Outside Layer-Flameproof Layer
Is there to protect you from the flames and radiated hear, this layer can withstand a constant temperature of 600 Deg”C”
There is a space between the outer and middle layer, this reduces the radiated heat being transferred to the middle chute.

Layer 2: The Middle Layer-Breaking Layer
This layer has a series of stainless steel coiled springs sewn into the material, these springs have a small diameter, so as you travel through them they restrict you, but will not hold you.
For that you have to place pressure on the wall with your leg’s and arms, the more pressure, the more you low right down, less pressure and you speed up.

Layer 3: The Inner Layer-Support layer
This is the layer that is connected to the storage/deployment device, and holds the chute in place

The Spring Type Escape Chute have 3 layer-spring type escape chute is a device that allows the safe mass evacuation of any large structure, at a rate of up to 25 people per minute.

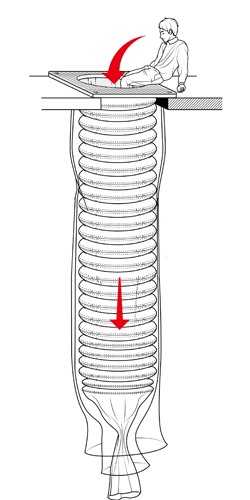

Just sit on the edge, with your legs in the chute, and feel it grip you, slide forward and lower yourself to waist level, spread your legs, and slowly lower yourself fully into the chute.

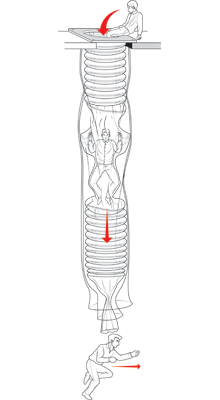

By Applying and releasing pressure against the interior wall of the chute, with your arms and legs, you have control of your decent speed.

Spring Type Escape Chute Manual
Sit on the edge of the chute with legs first into the chute and slowly let the body slide down the chute about 1m.
Look down between your legs at all time until you reach the ground.
You can control the speed of self-descent by pushing outward your knees and arms.

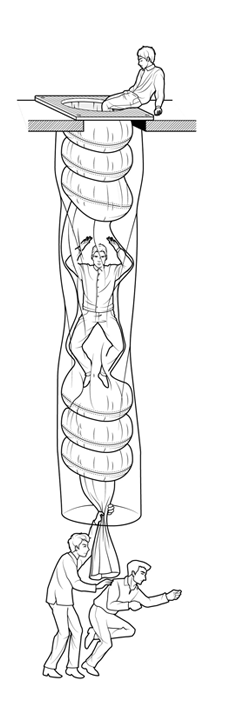

Assistant twists the chute to ensure that person lands on the ground safely and moves away from the exit point of the chute quickly.

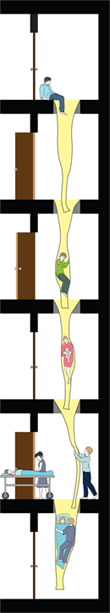

Vertical-Spiral Escape Chute
Mobile Type
  • Max.Working height: 70M
  • Max.Length of the chute: 70m(24storeys)
  • Classification: MSA Certificated
  • Material used: Flame retardant
  • A Lots of Persons can be escaped in a short times
  • The Escape can be used alone
  • The disabled, Senior citizens & pregnant women can be escaped easily
Where it needed
  • Government Buildings, Fire Truck Installation, Hotel, School, High-Rise Building, etc
Escape chute precautions
  1. Please use the product is used for the purpose of evacuation when the fire is put to emergency situations everywhere, if you use wrong way cause the human or material damages, serious injury or death are issued due to use depending on usage.
  2. When you open the frame without careful, it may be damage with spare part and frame such as exit windows or parts attached to the frame will occur.
  3. The folded device on Frame is rotated to straighten, be carefully your fingers or body parts may occur tight or bad situations.
  4. If When Escape chute use with twisted on the outside or contact obstacle, it occur to shock and/or damage.
  5. If Escape chute are using short or exceed the length of the rescue of 1M or more, it could not be evacuated. Be use to install the appropriate vertical descent way rescue the building and installation.
  6. When you go down the exposed parts of the body should not touch on slop fabric material. When you down, it occur friction parts exposed blossomed.
Storage Cautions

It have to dry after when you used, if have moist it may be change the color or damage on the Escape chute

When inspection occurs if the following precautions: Please contact immediately the necessary action will not occur until the situation in which a person can cause serious injury

  • When Escape chute stored during long-term storage, it occurred when corrosion or rust on the frame or supporting frame entrance folding device
  • when Escape chute fabric land discoloration or mold, etc. bloomed
  • When Escape chute fabric stuck or torn land
  • When various ropes have discoloration and/or mildew and/or tears
