PRODUCT
Water Mist Gun

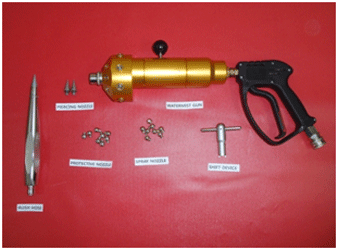

Water Mist Gun (WMG-8850)
The Gun has rotor that enables users to select flow path and thus right discharge type, angle, rate and reach for the type, pattern and size of the fire they attack.
Specifications
| Application Code | ISO9001:2008-High Pressure water mist firefighting equipment patent, NEP Certification, excellent product designated by Public procurement service |
|---|---|
| Type | Water Mist Gun for Fire Extingushing, straight type. |
| Application-Class | A, B, C class fire |
| Dimension | 182 x 490 x 98 mm |
| Weight | 3.65kg |
| Spray Pattern | 5 spray pattern -10~140° Protection and water mist circle spray |
| Operation Pressure | 60~120bar |
| Flow rate | 9~40 Liter/min |
| Distance | 6.5~17m |
| Nozzle | 8 Water mist Nozzle+8 Water Mist Protecting Nozzle+1 Center Spray Nozzle |
| Other | - Material: Duralumin: AL Alloy and SUS304 - Gold Hard Anodizing |
| Features | - Patent - Multiplex water spray pattern(3~5, 7pattern: Piercing nozzle) - Excellent fire extinguishing effect - Maximization of fire extingushing effect by attaching piercing nozzle |
Connection unit
- Mobile & Fixed System, Piercing Nozzle (NR-01)
